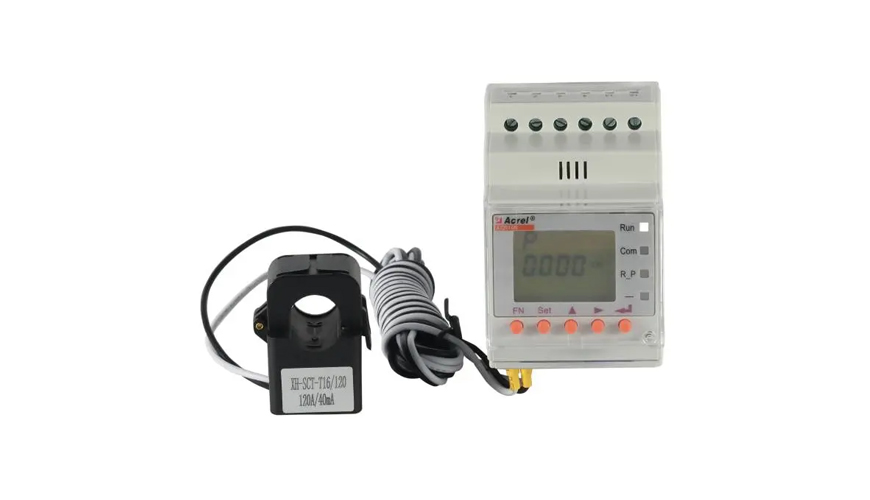

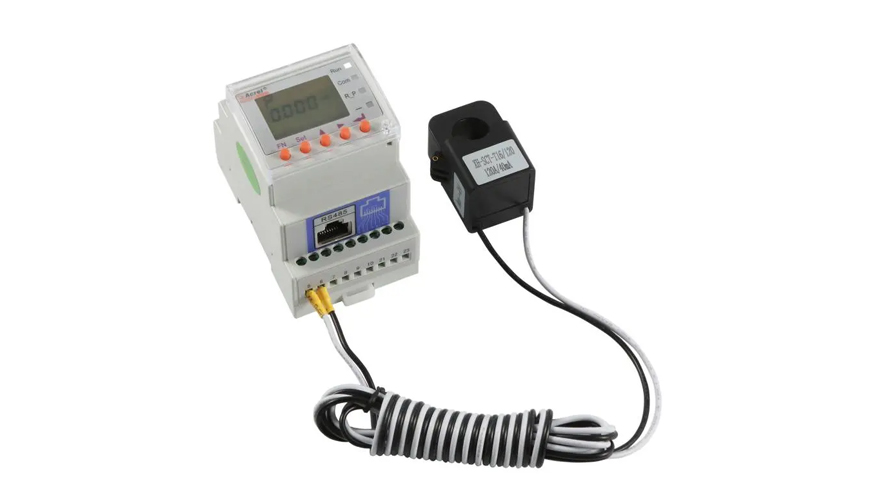

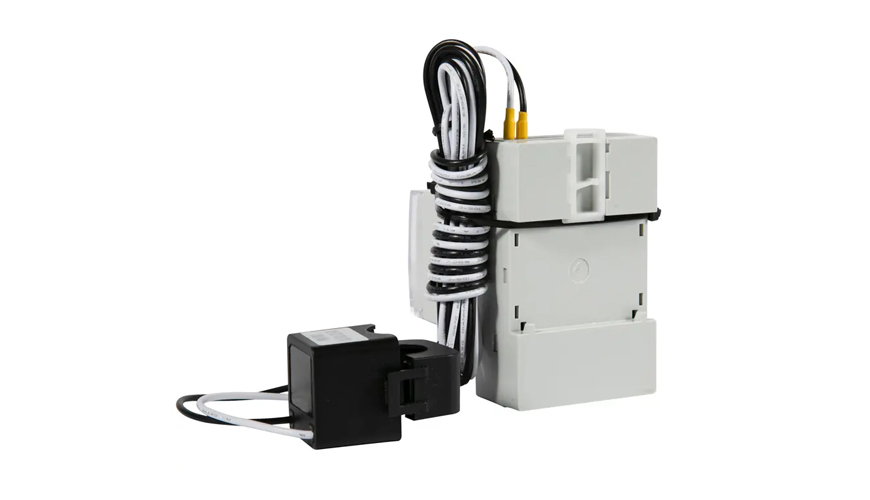

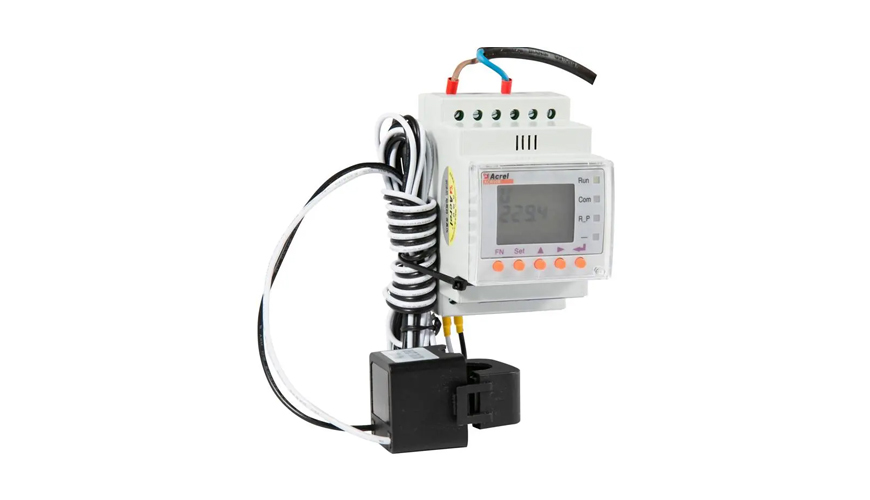

ACR10R-DXXT Single Phase PV/Solar Inverter Energy Meter

ACR10R-DXXT Single Phase PV/Solar Inverter Energy Meter

Measurement: 1-phase Active Power, Reactive Power, Current, Voltage and etc
Current Rating: up to 300A (paired with external CTs)
Communication: RS485 (MODBUS-RTU)
Application: Using in distributed Solar PV and Anti-reflux Inverter
Display: LCD Dispaly

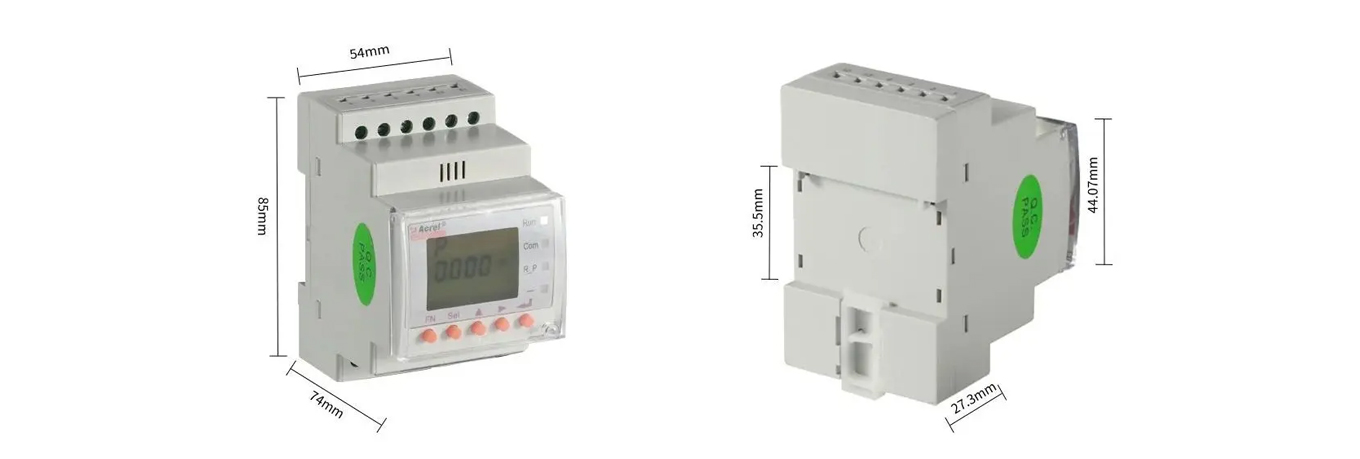

Dimension: 54*74*85mm (L*W*H)
Installation: 35mm DIN Rail
Power Supply: 85~265V AC or 100~350V DC
Standard&Certificate: CE

General Information of ACR10R-DXXT Single Phase PV/Solar Inverter Energy Meter

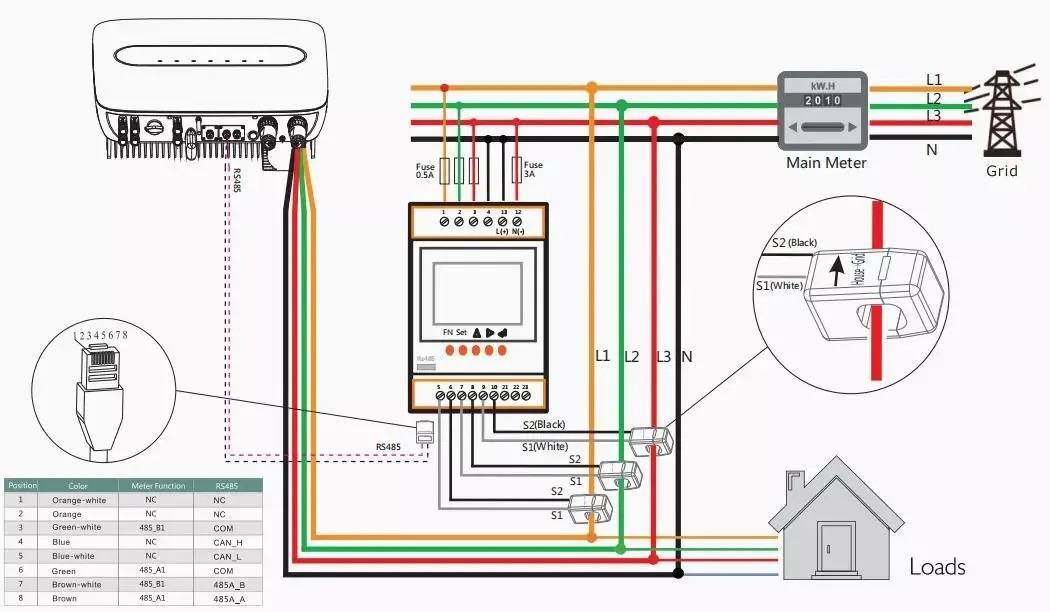

Suitable for distributed photovoltaic grid-connected cabinets and power grid monitoring, as well as energy demand management. The connection is simple and safe, reducing transformation costs and improving user efficiency. It integrates all electrical parameter measurements and comprehensive energy monitoring management, and has a variety of peripheral interfaces for users to choose from: RS485 communication interface supports MODBUS-RTU protocol to meet online communication management needs; switch input and relay output interfaces realize remote signal and remote control.

Specifications of ACR10R-DXXT Single Phase PV/Solar Inverter Energy Meter

Technical parameters			Indicators
Input		Grid	Single-phase
		Frequency	45～65Hz
		Voltage	Rated voltage: AC 100V, 400V
			Overload: 1.2 times the rated voltage(continuous); 2 times the rated voltage lasting for 1 second
			Power consumption: less then 0.2VA
		Current	Rated current: 10A，20A，40A，80A，120A，200A etc. (for details see product specifications)
			Overload: 1.2 times the rated current(continuous);10 times the rated current lasting for 1 second
			Power consumption: less then 0.2VA
Output		Communication	RS485 interface, Modbus-RTU



		Display	LCD
Measurement precision			Voltage: 0.2 level, current, power Active energy: 0.5 level,0.01Hz frequency, Reactive energy: 1 level
Power supply			AC85～265V or DC100～350V; power consumption ≤10VA
Safety	Power frequency withstand voltage		AC2kV 1 min between power supply // current input//voltage input and communication
			AC2kV 1 min between each pair of combinations among power supply, urrent input and voltage input.
	Insulating resistor		Input,output terminal to housing >100MΩ
Environment			Working temperature: -10℃～+55℃;storage temperature: -20℃～+70℃
			Relative humidity:5%～95%，non-condensing; altitude:≤2500m
