Input: 0~(40~200)A AC
Output: 4~20mA/0~20mA DC
Power Supply: 12V/24V DC
Perforation Hole Size: φ20mm
Application: Paired with PLC for Industrial Automation
Accuracy: Class 0.5
Response Time: ≤350ms

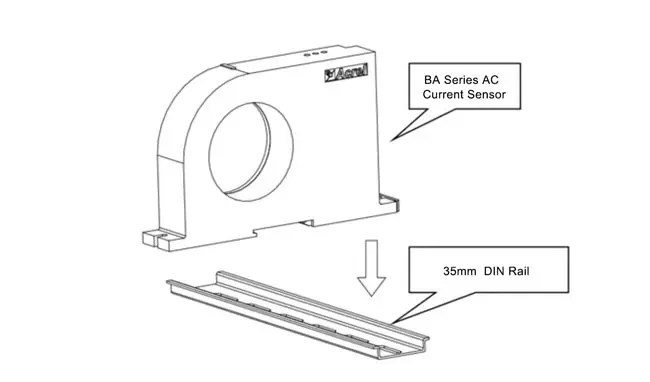

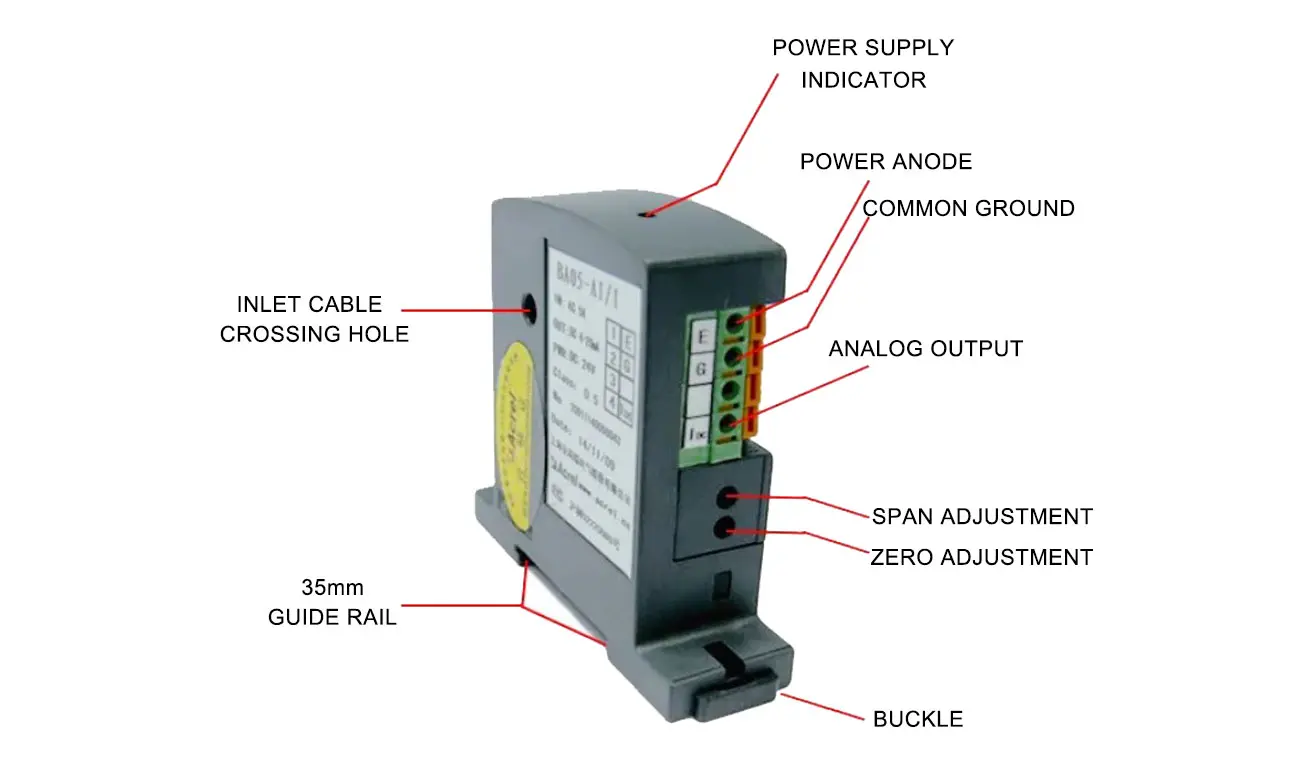

Installation: 35mm DIN Rail/Screw fixed
Standard&Certificate: CE; TüV
Contact Us
| Model Name | Input | Output | Perforation Hole Size(mm) | |
| AC Current | DC Current | DC Voltage | ||

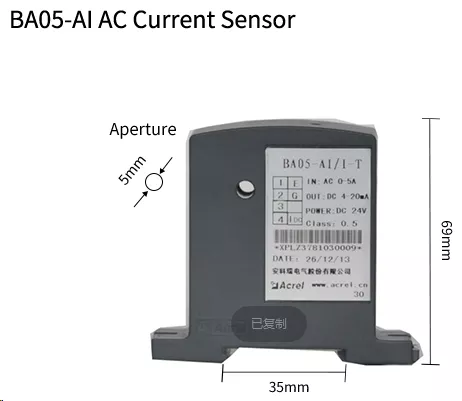

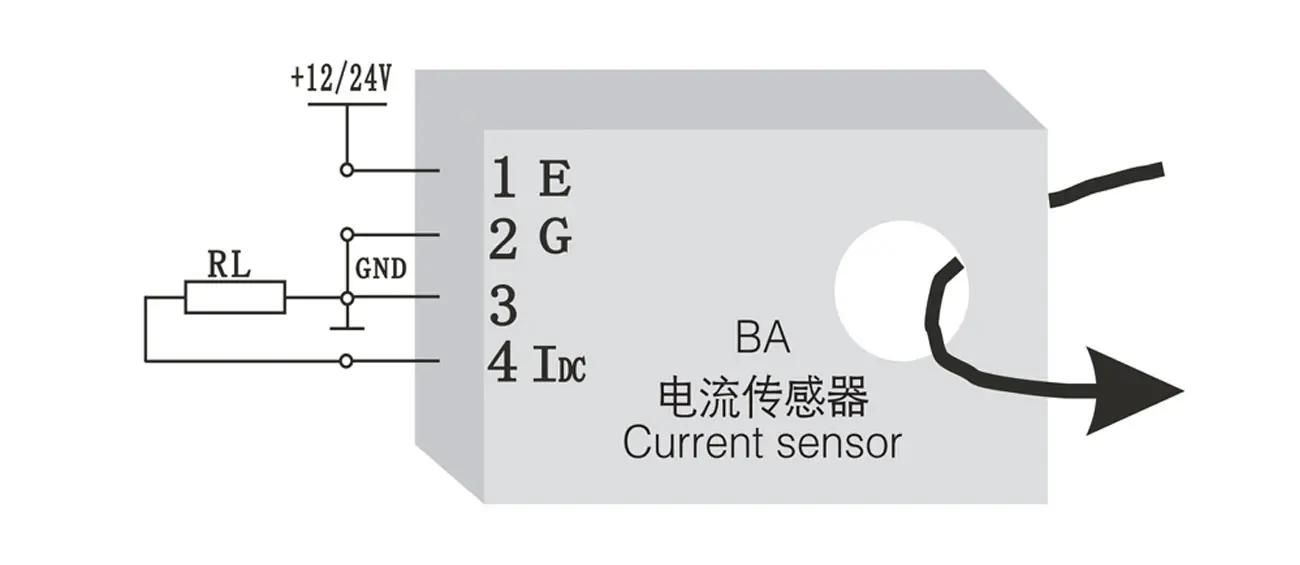

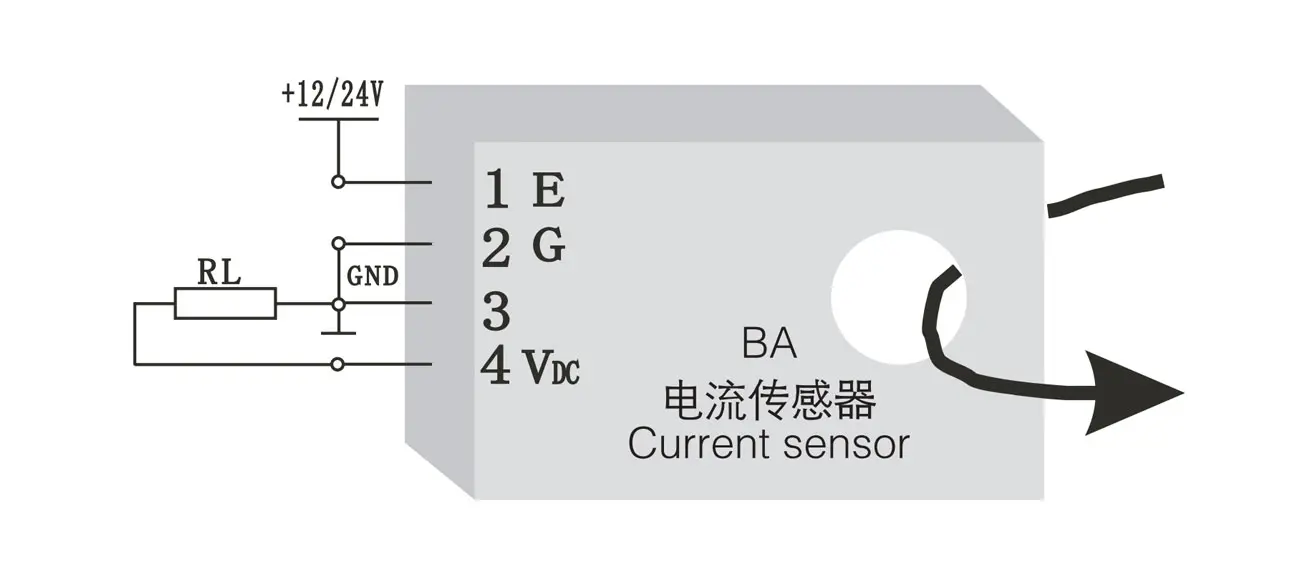

| BA05-AI/I | 0~(0.5~10)A | 4~20mA/0~20mA | / | φ5 |
| BA05-AI/V | 0~(0.5~10)A | / | 1~5V/0~5V | |

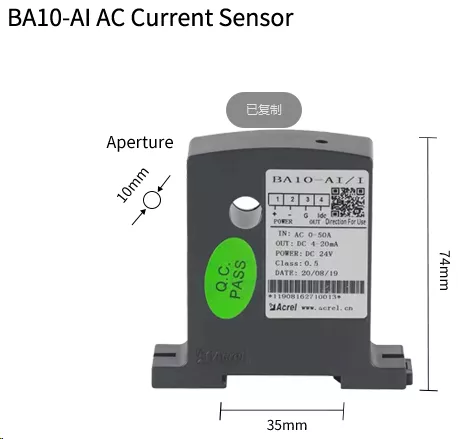

| BA10-AI/I | 0~(8~50)A | 4~20mA/0~20mA | / | φ10 |
| BA10-AI/V | 0~(8~50)A | / | 1~5V/0~5V | |

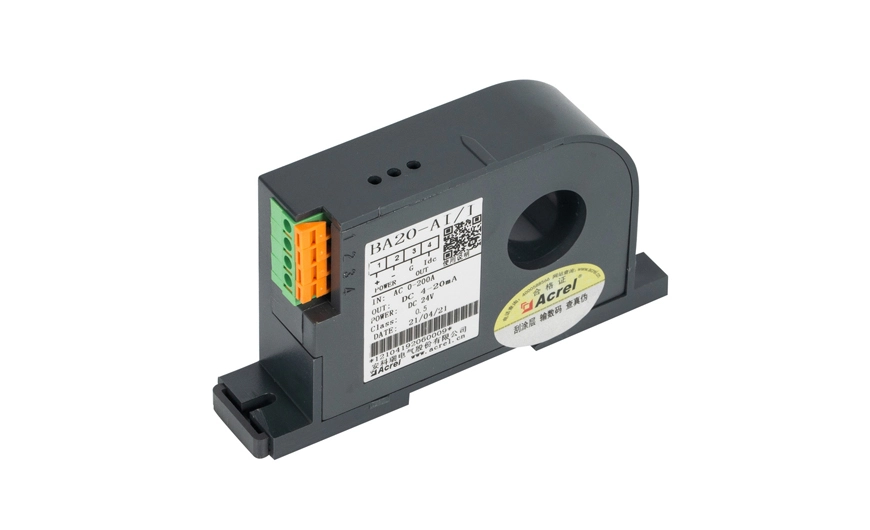

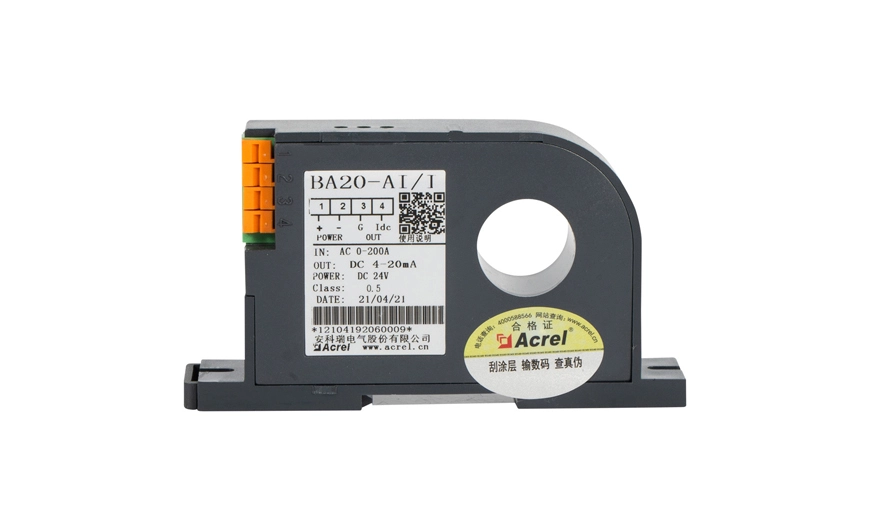

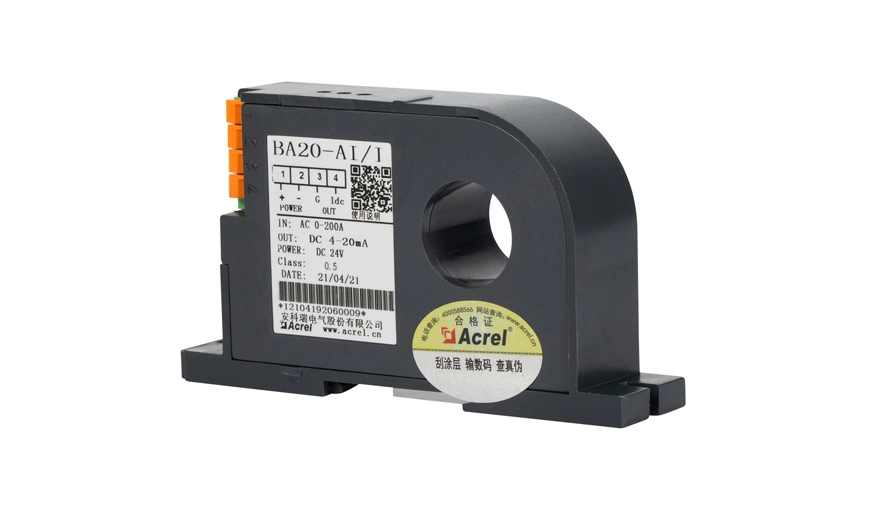

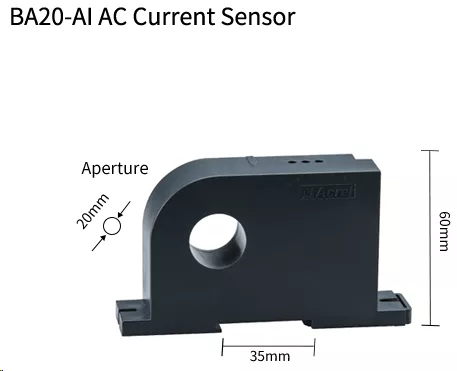

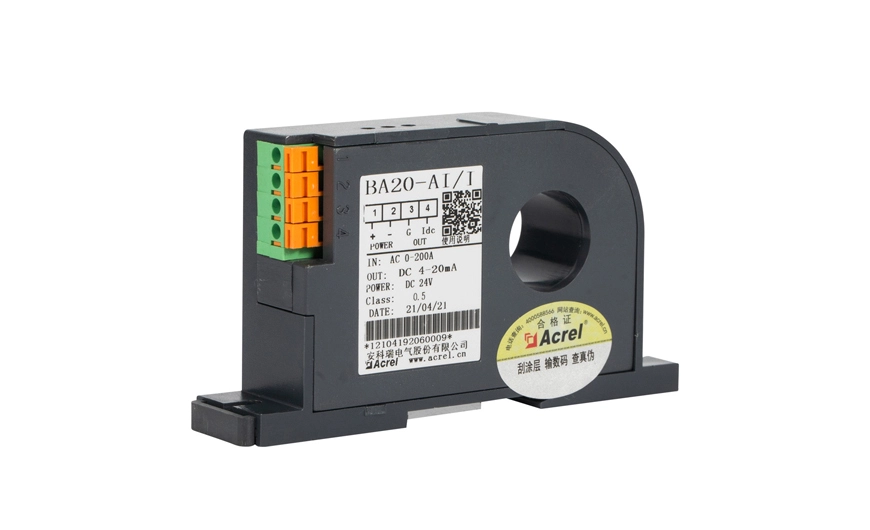

| BA20-AI/I | 0~(40~200)A | 4~20mA/0~20mA | / | φ20 |
| BA20-AI/V | 0~(40~200)A | / | 1~5V/0~5V | |

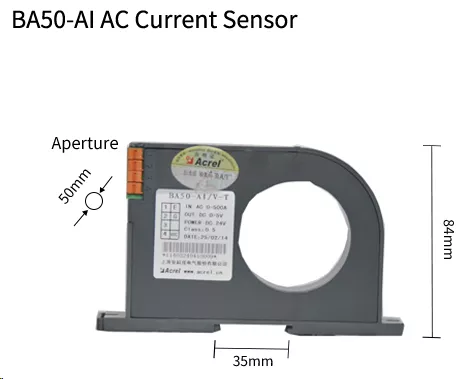

| BA50-AI/I | 0~(60~600)A | 4~20mA/0~20mA | / | φ50 |
| BA50-AI/V | 0~(60~600)A | / | 1~5V/0~5V | |
| BA50L-AI/I | 0~(0.1~1)A | 4~20mA/0~20mA | / | |
| BA50L-AI/V | 0~(0.1~1)A | / | 1~5V/0~5V | |
| Item | Description |
| Auxiliary Power Supply | DC 12V (range of 10~15V) or DC 24V (range of 18~30V) |
| Accuracy Class | 0.5% |
| Load Resistance (Output) | Current Output: ≤500Ω; Voltage Output: ≤1000Ω |
| Response Time | ≤350ms |
| Temperature | Operation Temp.: -10℃~+55℃; Storage Temp.: -40℃~+80℃ |
| Temperature Coefiicient | ≤200ppm/℃ |
| Humidity | ≤90% |
| Altitude | ≤2500m |

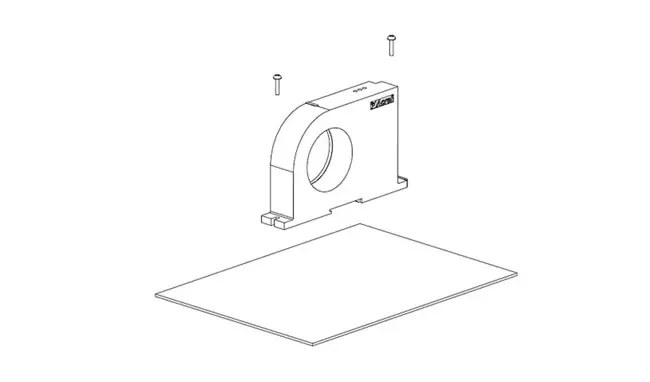

| Installation | 35mm DIN Rail or Screw fixed |
| Standard | CE/TüV |
 |  |  |  |
| BA05 | BA10 | BA20 | BA50 |
| BA05-AI/I(V) | BA10-AI/I(V) | BA20-AI/I(V) | BA50-AI/I(V) | BA50L-AI/I(V) | ||
| Auxiliary Power | DC12V | Range:10~15V | ||||
| DC24V | Range:18~30V | |||||
| Consumption | ≤1W | ≤1W | ≤1W | ≤1W | ≤1W | |
| Through-hole size | Φ5mm | Φ10mm | Φ20mm | Φ50mm | Φ50mm | |
| Input | Current | AC 0~(0.5~10)A | AC 0~(8~50)A | AC 0~(40~200)A | AC 0~(60~600)A | AC 0~(0.1~1)A limitation of leakage currents |
| Output | Nominal value | DC 4-20mA,or 0-20mA,0-5V,0-10V etc | ||||
| Load resistance | Current output≤500Ω,Voltage outout≥1kΩ | |||||
| Accuracy Class | 0.50% | |||||
| Response Time | ≤350ms | |||||
| Temperature | Operation: -10 to +55℃ Storage: -25 to +70℃ | |||||
| Temperature coefficient | ≤200ppm/℃ | |||||
| Installation | (Rail)DIN35,fix on cubicle with screws | |||||
| Standards | GB/T 13850 | |||||

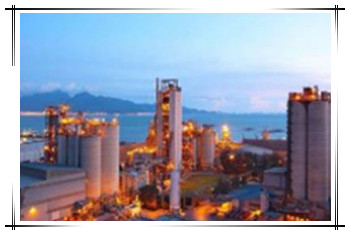

Cement Building Petrochemical Industry
