Acrel Meter Projects in Europe

Project Sample #1 - ltaly Enel Green Power Project

(1) Project Overview:

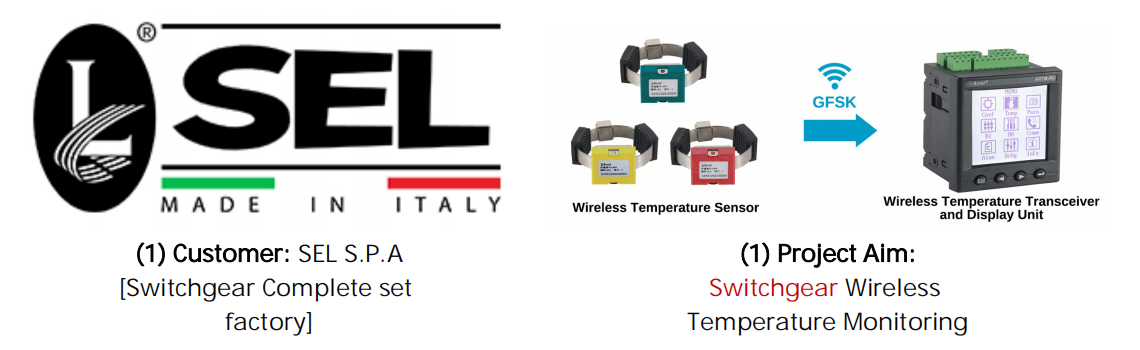

• Customer: SEL S.P.A [Switchgear Complete set factory]

• Country: Italy

• Project Aim: Integrate Acrel wireless temperature monitoring devices with switchgear sproduced by SEL S.P. A for adding satety feature to their switchgear products.

• Project Amount: About 400.000 USD

(2) Applied Product Combination:

- ARTM-P30-400 Wireless Temperature Transceiver and Display Unit

[For collecting, displaying and alarming for all temperature data collected from ATE400]

- ATE400 Wireless Temperature Sensor

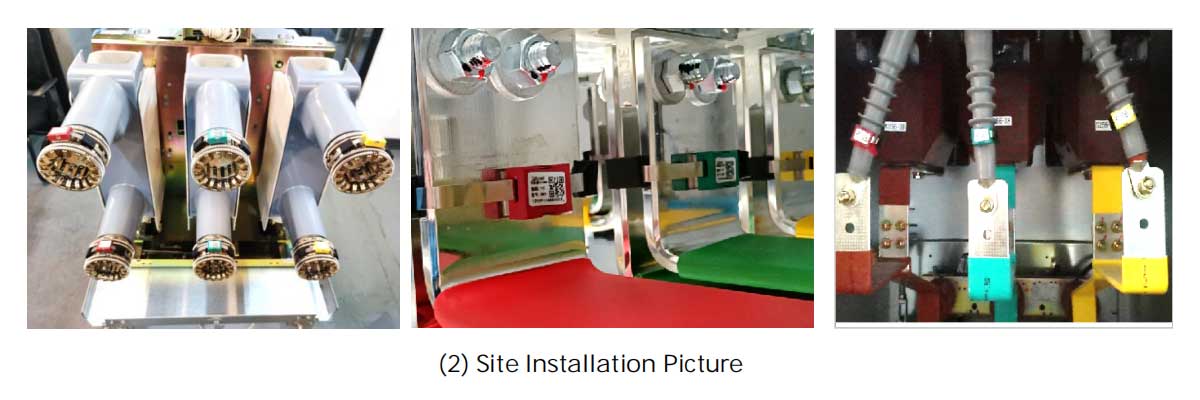

[For monitoring the temperature of electrical connection nodes and send the data to ARTM - P30-400 via GFSK wirelesss Comms.]

Project Sample #2 -UK Deluxe Building Energy Management Project

(1) Project Overview:

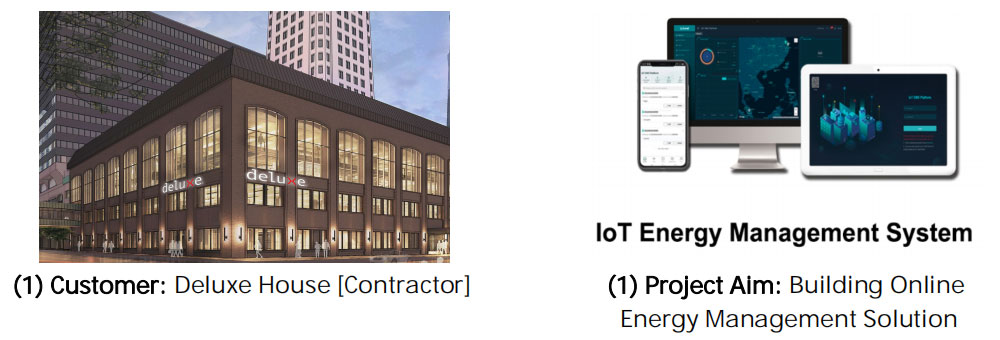

• Customer: Deluxe House [Contractor]

• Country: UK

• Project Aim: To realize the digitalization and visualiation of building's overall sub-metering circuits energy consumption management [Online Energy Management]

• Project Amount: About 186.000 USD

(2) Applied Product Combination:

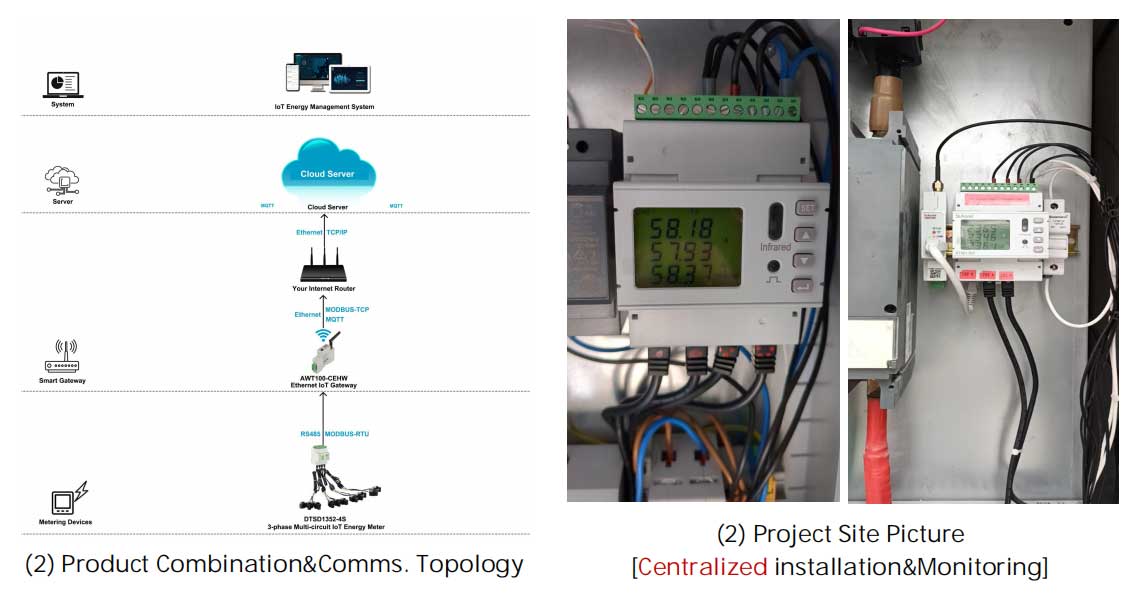

- AWT100-CEHW IoT Ethernet Gateway [Collect data from DTSD1352-4S via RS485 and upload data further to loT system via Ethernet]

- DTSD1352-4S 3-phase Multi-circuit Energy Meter [for monitoring up to 4 circuits 3-phase]

- AKH-0.66/K K-xxN Series Split-core CT [paired with DTSD1352-4S for current input.]

Project Sample #3 -Multi Channels Energy Meters in a Company in Poland

Abstract: Multi channels energy meter can realize up to 12 three-phase or 36 single-phase direct access measurement or 12 three-phase measurement through current transformers. This series energy meters are favored by communities, schools, enterprises due to their high accuracy, centralized installation, centralized management and high installation flexibility. This article introduces the application of Acrel multi channels energy meters in a company in Poland.

Keywords: Multi channels energy meter

(1) Project Overview

The customers need 2 channels three-phase direct access and 2 channels three-phase secondary access measurement. Acrel ADF400L series energy meters meet the user's application and conditions.

(2) Acrel Energy Management System

Acrel energy management system is widely used in schools, commercial buildings, office buildings, industrial and mining enterprises, road traffic projects, etc.

2.1 Structure

2.2 Functions

• Overview of Energy Consumption

• Statistics of Energy Consumption

• Data Reading

• Analysis Report on Energy Consumption

2.3 Product Selection

(3) Photos on site
