(1) Project Overview:
Customer: V.T.E.C.H Electrical Technology Co., Ltd, EPC [Party A]
Country: Vietnam

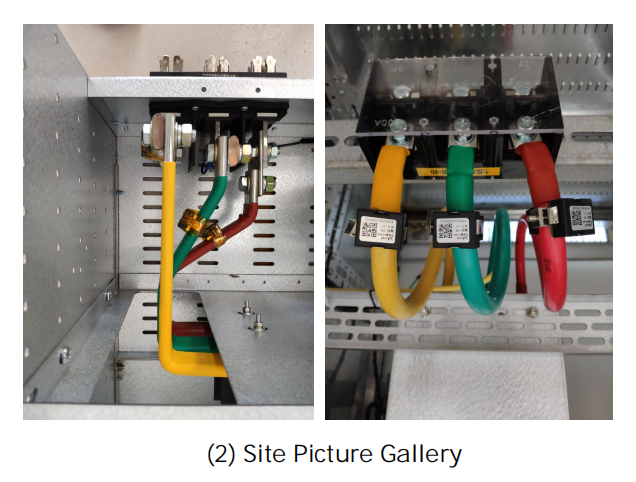

Project Aim: Client use Acrel complete Cloud Wireless Temperature Monitoring Solution for monitoring and alarming electric cabinet in Lotte Mart to ensure electricity safety.
Project Amount: About 100.000 USD

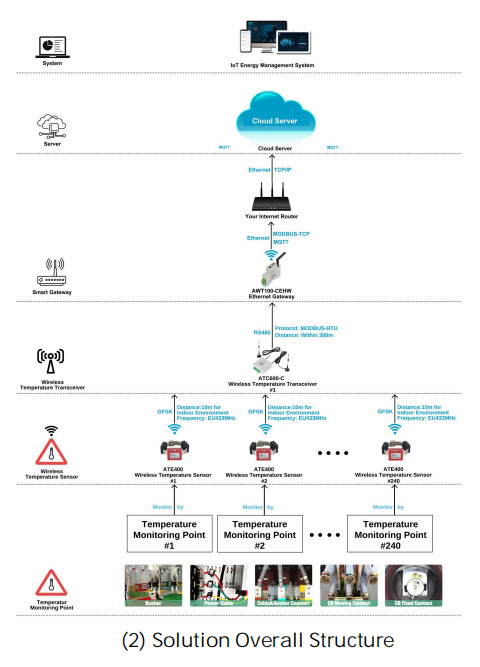

(2) Applied Product Combination:
- AWT100-CEHW Ethernet loT Gateway
- AWT100-POW Power Supply Module
- ATC600-C Wireless Temperature Transceiver
- ATE400 Wireless Temperature Sensor
(1) Project Overview:
Customer: TOM'ELE-KT POWER SYSTEMS INC [Complete Set/Switchgear Factory]
Country: Phillippines
Project Aim: Use Acrel Multi-channel AC energy meter and smart touch to be integrated with customers's own AC Data Center Switchgear for precise energy sub metering and further upload the data to customer's monitoring system
Project Amount: About 100.000 USD

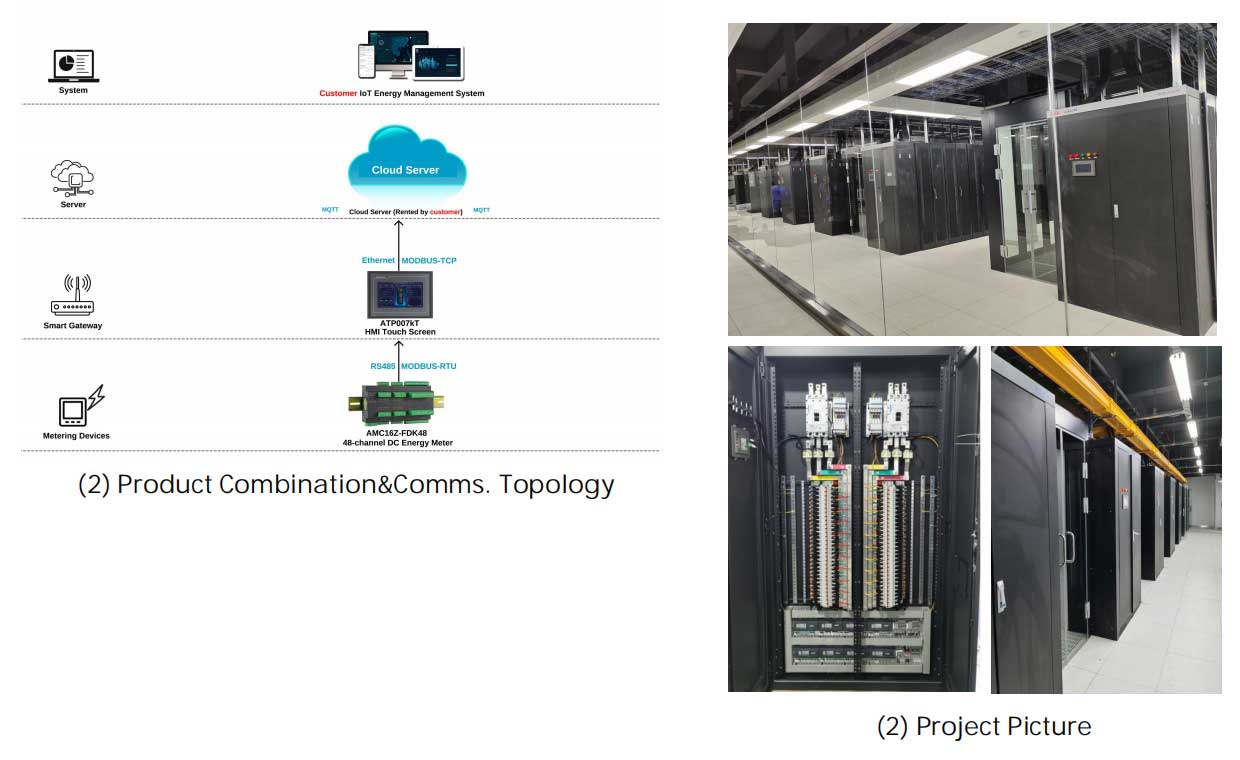

(2) Applied Product Combination:
- ATPOO7kT Smart Touch Screen [for centralized monitoring and alarming all the data collected by AMC16- FDK48 and further uploading data to upstream system via Ethernet]
- AMC16-ZA Multi-circuit AC Energy Meter [for monitoring up to 2 circuits 3- phase]
- AMC16-FAK48 Multi-circuit AC Energy Meter [for monitoring up to 48 circuits 1-phase]
- AKH-0.66/30I 250A/5A [paired with AMC16-ZA for AC current signal input]
- AKH-0.66/EMS 50A/50mA [paired with AMC16- FAK48 for AC current signal input]
(1) Project Overview:
Customer: POWERBUILD CONST AND DEVT CORP [Contractor]
Country: Phillipines
Project Aim: To realize the digitalization and visualiation of factory 3-phase machines' and other loads' energy consumption management [Online Energy Management]
Project Amount: About 100.000 USD

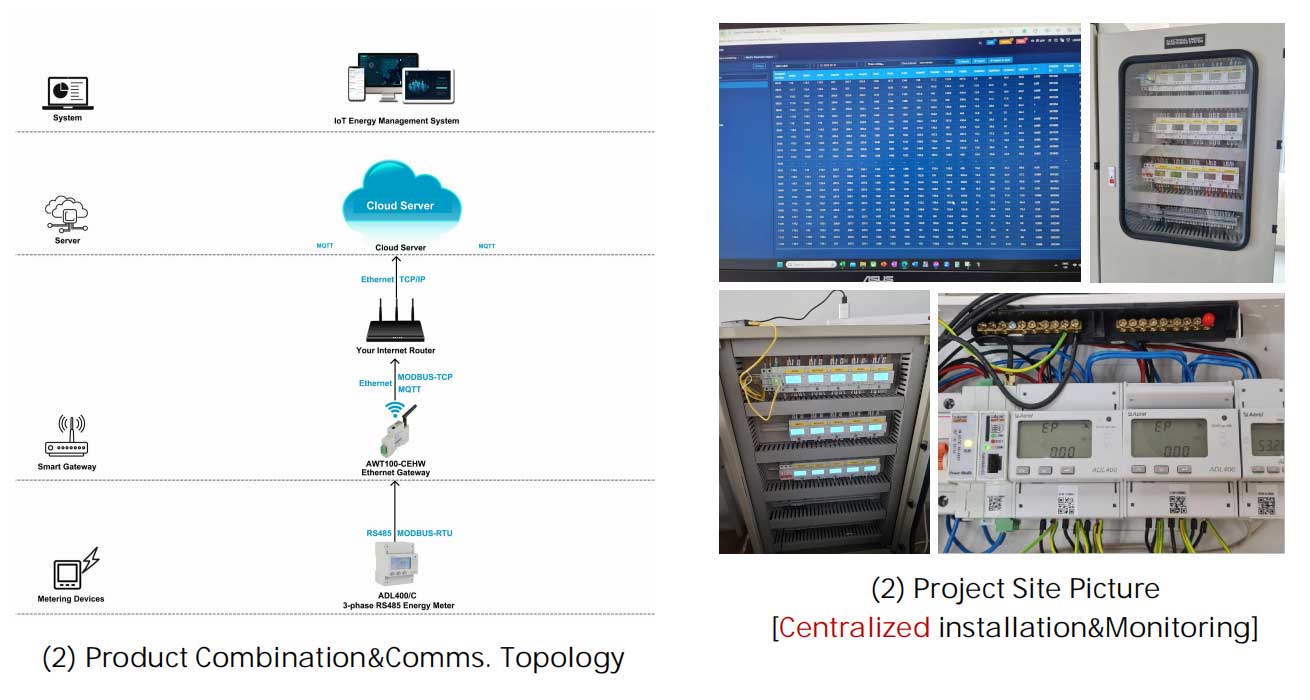

(2) Applied Product Combination:
- AWT100-CEHW loT Ethernet Gateway [Collect data from ADL 400 via RS485 and upload data further to loT system via Ethernet]
- ADL400 3-phase Energy Meter [for monitoring 3-phase circuits and loads]
- AKH-0.66/K K-xx Series Split-core CT [paired with ADL 400 for current input.]
Abstract: This article introduces the application of Acrel DC meters in base station in Saudi Arabia. The device is measuring current, voltage and energy together with shunt.
(1) Project Overview
This company is located in Saudi Arabia and is the installation telecommunication service company in Saudi Arabia. Mainly used DC multi-function meter PZ72L-DE/C and shunt, used to measure and monitor current and voltage in telecommunication station.
(2) PZ Series DC Programmable Intelligent Electric Meters
PZ series intelligent DC energy meter is designed for applications such as DC panels, solar power, telecommunications base stations, and charging posts. This series of instruments can measure voltage, current, power, forward and reverse power in DC system. It can be used for local display, and connected with industrial control equipment, computers, form a measurement and control system. And it has a variety of external excuse functions for the user to choose: RS485 communication interface, Modbus-RTU protocol, relay alarm output, digital input/output.
According to different requirements, through the instrument panel keys, you can set the ratio, communication parameters.
The product meets the relevant technical requirements of the standard Q/GDW1825-2013 DC power meter specification, GB/T29318-2012 Non-vehicle charging electric energy metering for electric vehicles, Q/GDW364-2009 Single-phase energy meter specification.
(3) Technical data
(4) Product main functions
(5) Installation picture
